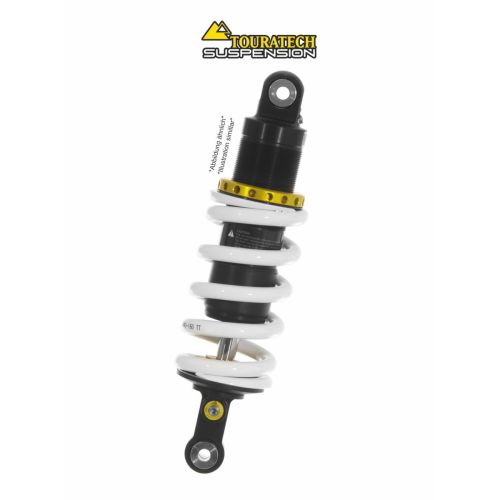

Touratech Suspension shock absorber for Yamaha MT 09 Tracer ab 2015 Type Level1/Explore

More performance and comfort for your Yamaha MT 09 Tracer with the Touratech Suspension shock absorber Type Level1. Wether you set off to ride through many curves or to have a nice tour with your friends, the great adjusting range allows you to get a better setting of balance and damping as you could with the standard components. The Level1 emulsion shock absorber can be adjusted by a setting tool to be adapted to the load of the big travel luggage. The finely adjusted damping allows you to fine-tune the bike for any road condition and intended use, regardless of motorways/fast roads, country roads, country lanes or a speedy, ambitious driving style.

The new dimension of chassis for your Yamaha MT 09 Tracer.


Most important features:
=> The shock absorber is configured on the basis of our experience with the Yamaha MT 09 Tracer and is set "ready-to-ride".
=> Parameters include weight of the vehicle / pivot of the shock absorber / constructional conditions / test rides.
=> The shock absorber described here is designed for up to 100 kg weight of the rider including travel luggage.
=> The rear and front sections of the motorcycle should be adjusted for all chassis solutions.



Properties of the Touratech Suspension Level1 shock absorber:
=> The shock absorber housing is made of aluminium.
*** This results in lowest possible weight.
=> Fitted with special low-friction seals with integrated Teflon back-up ring for low
*** wear and long durability of the shock absorber.

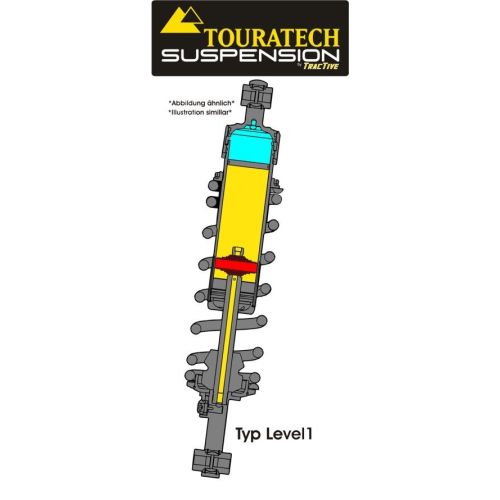

=> Emulsion construction and finer responses of the shock absorber.
=> Large 16 mm piston rod made of chromium-molybdenum steel for maximum stability and durability
=> 38 mm damping piston with special Touratech setup.
=> The suspension spacer is fitted with sturdy stainless steel bushings for the fastening screws.
*** This gives the fastening screw a firm, backlash-free fit, even at highest loads.
- All assemblies and components are designed for intensive touring use.
=> QR barcode on the shock absorber with individual shock absorber information.
*** This enables easy call-up of shock absorber-specific information by scanning with a Smartphone.
*** Information on the basic setting of the shock absorber can be called up at any time. Reset is possible for incorrect setting.
=> Fully service-enabled. This allows permanent maximum ride dynamics.



The basic setup fitted here is designed for riders up to 100 kg including luggage. Modifications are possible
for a heavier rider (more than 100 kg) and/or if the bike is usually ridden with a passenger / with luggage. In this case,
we individually modify the shock absorber to meet your needs by fitting a spring with a higher spring rate.
Please fill out our suspension check form and send it back to us.

Scope of delivery:
- Ready-to-mount shock absorber.
- General Operating License
- Mounting instructions / user manual

If you have any further questions, we will be happy to advise you. Contact us.
